Glaeson system spiral bevel gear cutters

1.  Old structure:

Average diameter: 31/2" ～ 60"

Alternate roughing cutters(Two sides)

Triplex roughing cutters(Three sides)

Alternate finishing cutters

Outside finishing cutters

Inside finishing cutters

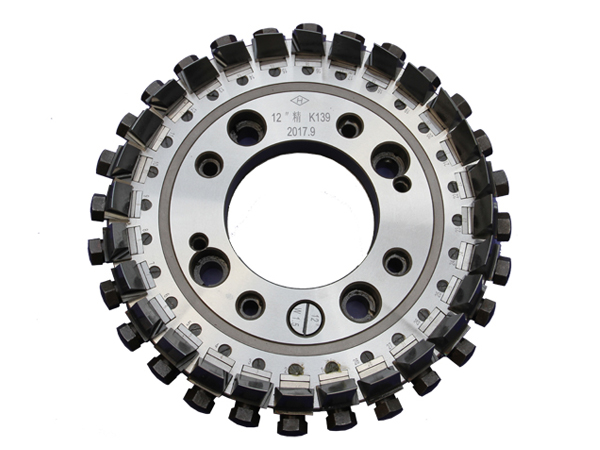

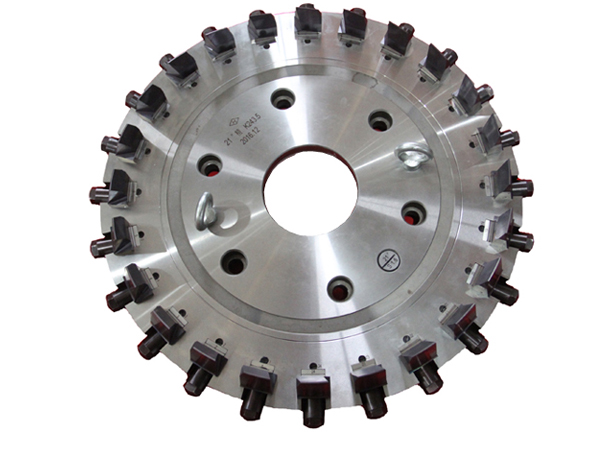

2.  New structure:

Average diameter: 5" ～ 21"

Alternate roughing cutters(Two sides)  RIDG-AC type

Triplex roughing cutters(Three sides)

Alternate finishing cutters        Hard-AC type

Outside finishing cutters          Hard-AC type

Inside finishing cutters             Hard-AC type

Helixform finishing cutters

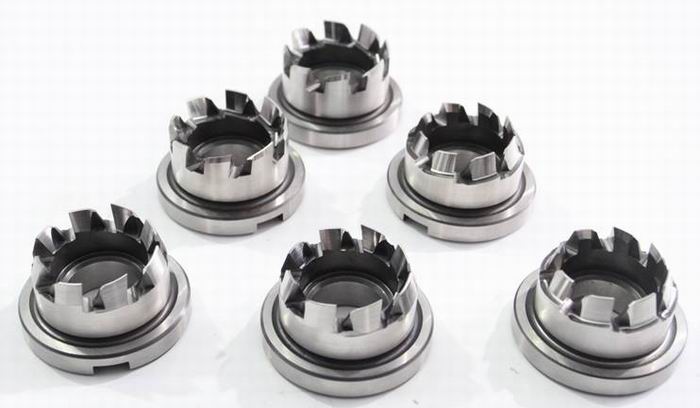

3. Solid structure(small diameter)

Average diameter: 11/2" ～ 2"

Alternate cutters
